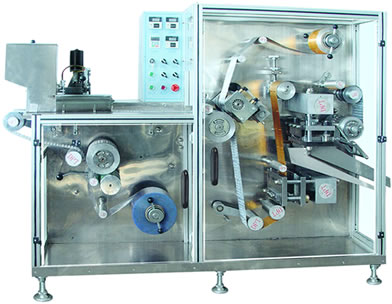

DPT250D型变频调速泡罩包装机

　　DPT250D变频调速泡罩包装机，采用台湾台达变频调速、是同类机型效率的一倍，适用各种不同规格的素片、糖衣片、胶囊、胶丸及异形片粒状等药品。

　　该机是胆式内加热铝塑泡罩包装机，由于在加热辊表面采用先进的涂氟技术，因而使PVC受热均匀，泡罩成型挺实。停机、开机不存在丢泡现象，避免包装材料的浪费。吸泡、充填、网纹热封、板块冲裁皆可连续作业、并具有断裂线及批号打印功能；无边冲裁可节省包装材料4%-6%。该机最大的优点是不用气源，热封辊的动作均采用电推杆，成型及封合为分体式，该机具有结构简单，操作方便，主要部件全部采用不锈钢制造，外表全封闭，既美观又卫生，符合GMP标准。

　　主要技术参数：

　　1、包装材料：PVC250×0.25（mm）PTP250×0.02（mm）

　　2、最大成型深度：15mm

　　3、冲裁次数：25-50次/分

　　4、包装效率：6-10万粒/小时

　　5、耗水量：2.91L/min

　　6、电源总功率：3.0KW

　　7、电压：380V/50HZ 220V/50HZ

　　8、重量：800kg

　　9、外形尺寸（长×宽×高）：1800×1030×1600（mm）

Type DPT250D Variable-frequency Speeding Blister Packing Machine

　　Type DPT250D variable-frequency speeding blister packing machine uses Taiwan Taida frequency converter. The frequency is as twice as other same machines and is applicable for different specs of tablets, sugar-coat pills, capsules, CAP, and abnormal tablets and granules.

　　It is the gallbladder-type inner-heating aluminum-plastic blister packing machine. Because it adopted the advanced fluorin-painting technology on the surface of heating rollers, so PVC can get even heat, and firm molding blister packing. There is no phenomenon of losing bubbles when stops and starts packing. Therefore it can avoid waste of wrappers. Following working procedures can be performed continuously, including absorbing bubbles, filling, and wove heating-seal. It can print batch numbers and split lines. The plank cutting without edges can save 4%-6% of wrappers. The greatest advantage of this machine is that it doesn’t use gas source, the electric handspike drives heating rollers, and separate molding and sealing. It has the advantages of simple structure, convenient operation. The main components are made by stainless steel. Beautiful and sanitized all-sealed appearance accords with GMP standard.

　　Specifications:

　　1. Wrapper: PVC250×0.25（mm）PTP250×0.02（mm）

　　2. Max forming depth: 15mm

　　3．Cutting frequency: 25 —50 times/Min

　　4. Packaging efficiency: 60000-100000 granules/hour

　　5. Water consumption: 2.91L/min

　　6. Total power supply: 3.0KW

　　7. Voltage: 380V/50HZ 220V/50HZ

　　8. Weight: 800kg

　　9.Dimension (Length × Width × Height): 1800×1030×1600（mm）
